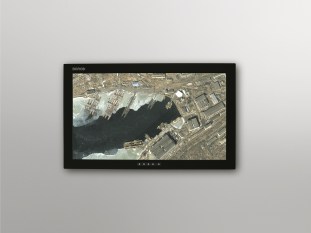

HD-40 40" rugged large display for collaborative visualization

Cena na telefon

Produkt niedostępny

Barco’s 40-inch rugged display is an ideal solution for collaborative review and decision-making in Combat Information Centers, bridges and other shipboard locations. The large-screen displays are network-capable and feature integrated computing modules to display any and all data, including video over IP. Barco's HD-40 display can be mounted on any shipboard bulkhead location and will accept analog, digital and internet protocol signals.

Features

High Definition

The native HD resolution (1920 x 1080 pixels) delivers bright and crisp graphics and video. In addition, with the fast response time (< 16 ms), HD displays reproduce fast-moving images with vivid accuracy. Finally, the HD’s wide viewing angle (178°) offers optimum viewing comfort when multiple viewers are involved.

A naval display par excellence

Barco's HD displays are fully 901D qualified, so they easily withstand the harsh shock, vibration and temperature conditions that are typical of naval environments.

Low dimming

Thanks to the integrated backlight inverters, the HD displays can be dimmed to extremely low light levels, previously only achievable with CRT technology, which makes them perfect for operation in low ambient light conditions, typically found on ship bridges during nighttime.

Screen size	40"
Resolution	HD 1080 (1920x1080px)
Brightness	Typical 400 cd/m² (116 fL)
Contrast ratio	2000:1 (in dark environment)
Dimming ratio	minimum 150:1 (from daylight readability to night conditions)
Vibration	Ships: MIL-STD-167-1, Type 1
Shock	MIL-STD-810F Meth. 516.4 \| 30g - 12.5ms half sine MIL-STD-901D, Class I, Medium weight Grade B
Operating temperature	MIL-STD-810E Low temp: 0°C High temp: +50°C
Storage temperature	MIL-STD-810E Low temp: -40°C High temp: +70°C
Humidity	MIL-STD-810E Max. 95% @ 40°C
Operating altitude Low pressure	MIL-STD-810E 15,000 ft
EMI / EMC	MIL-STD-461 F (Surface navy applications)
FCC	FCC-A
Signal inputs	DVI-I, VGA (type DVI-I, integrated DVI) Video-over-IP (optional)
RS-232 serial port	9 PIN sub D
Power	MS 27656 T 09 F 98P (MIL-C-39999 series I)
Controls	UP / DOWN / SEL / QUIT / STANDBY In conjunction with OSD
Indicators	Green ‘Power’ LED, Red ‘Fault’ LED
Power Supply	115-220V AC
Guidelines	MIL-STD-1399 compliant section 300A
Power consumption	240W (typical)
Safety	IEC 950
Weight	33.6 kg (74 lbs)
Finishing	Bezel color is No 37038 (FED-STD-595), lusterless black
MTTR	Less than 30 minutes
Scaling	No scaling / full screen / keep aspect AutoSet, Automatic Phase Adjust (APA), Automatic Gain Control (AGC)
Options	Video-over-IP via fiber or copper Ethernet
