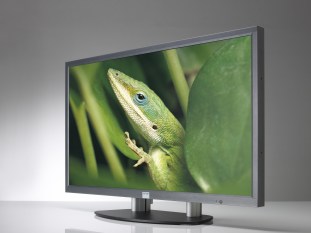

LDX-46 46" full HD LED backlit LCD display
Barco's LDX-46 display with LED backlights has been designed for use in a wide variety of professional applications. The LDX-46 produces crisp, bright and color-accurate images on a 46” screen size.
Featuring LED backlit LCD technology, the LDX-46 boasts a high brightness and durable LED backlight technology and provides an exceptionally thin and space-saving design. Available in native full high definition (1920 x 1080 pixels), the LDX-46 is a high-quality display for long-term usage.
Barco's LDX-46 combines the typical benefits of liquid crystal technology (such as low maintenance costs) with energy-efficient LED backlights, reducing image burn-in and colorations.
Wide viewing angle
The wide viewing angle (178°) and large surface are very beneficial in collaborative environments where detailed information is viewed by multiple participants.
Space-saving design
The LDX-46 is based on Edge LED technology, meaning that the LEDs are positioned around the outer rim of the screen. This technology provides the LDX-46 with an exceptionally thin and space-saving design. The display has been designed for easy installation of high-quality standalone applications or as a complementary visualization solution in modern control rooms.
High resolution
Barco's high-resolution LDX-46 shows large amounts of data in accurate and high-quality images. Any input source can be shown pixel-on-pixel, which avoids unnecessary scaling artifacts often found on lower-resolution displays. Combined with the displays' non-glossy professional LCD panel and Anti-Image Retention functionality, the LDX-46 delivers bright and crisp images that do full justice to high-resolution graphics and video.
Features
- High brightness
- High contrast
- Wide viewing angle
- High resolution and pixel density
- Frame lock
- Low power consumption
- Long lifetime
- Easy installation
- Space-saving design
- Eco-friendly
| LCD technology | S-PVA, normally black DID technology for extensive usage AIR Anti Image Retention Circuitry |
|---|---|
| Resolution | Full HD (1920x1080) |
| Backlight | Edge LED |
| Aspect Ratio | 16:9 |
| LCD technology | • S-PVA, normally black • DID technology for extensive usage • AIR Anti Image Retention Circuitry • Internal 10bit processing for precise color calibration |
| Pixel density | 48 dpi |
| Refresh rate | 120 Hz |
| Luminance | 700 cd/m² (max) |
| Contrast ratio | 4000:1 (typ) |
| Viewing angle | H 178°/ V 178° |
| White point | 10,000 K |
| Color depth | 10 bits - 1.07 B colors |
| Precision | Internal 10bit processing for precise color calibration |
| Backlight lifetime | 50,000 h |
| MTBF | > 100,000 h @25°C |
| Active screen diagonal | 46” (1168 mm) |
| Dimensions | 1075 x 639 x 85 mm (42.32” x 25.16” x 3.35”) |
| Active screen area | 1019 x 573 mm (40.12” x 22.56”) |
| Weight | 27 kg (59.52 lbs net) |
| Cooling | Fanless cooling - low noise |
| AC input voltage | 100-240 VAC, 60-50Hz |
| Power consumption | 207W (max) 88 (typ) 19 (sleep) 2.1 (stdby) |
| Heat dissipation | 706 BTU/h (max) |
| VGA | Separate sync DSUB-15P in/out |
| DVI | Single link DVI-D in/out with HDCP |
| Display port | Display port input (Out via DVI) |
| HDMI | HDMI Type A with HDCP (Out via DVI) |
| HD-SDI | 2x BNC in 2x out SD, HD, 3Gb/s |
| CVBS | BNC in/out |
| S-video | Mini-DIN S-terminal in/out |
| Component video | 3xBNC in/out |
| Barco NSL control manager | Server connected via RS232 chain Remote client application: on/off, wall setup, source selection, status, brightness, contrast and color adjustments |
| Control signal | RS-232 DSUB9 PIN in/out |
| Operating temperature | 0° to 40°C |
| Operating humidity | 20-80% non-condensing |
| Storage temperature | -20 - 60°C |
| Storage humidity | 10-90% non-condensing |
| Regulation Compliance | CE, TÜV, cTÜVus, CCC, ROHS, WEEE |
