Dane techniczne:

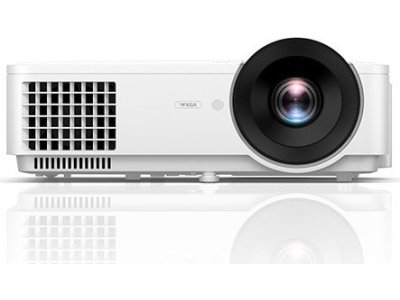

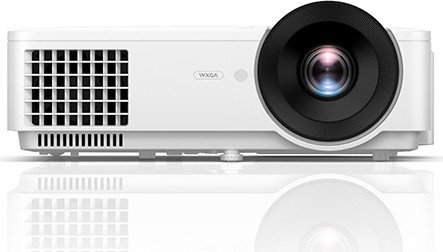

LW720 Corporate Laser Projector
Podstawowe cechy:
- Typ: DLP
- Źródło światła: Phosphor-Laser
- Chips: 1x 0.65"
- Rozdzielczość (wyświetlana): WXGA (1280x800)
- Rozdzielczość (podstawowa): WXGA (1280x800)
- Jasność: -/4000/- ANSI Lumen (wysoki/standardowy/Eco)
- Kontrast: 100.000:1
- Format obrazu: 16:10 natywny
- Przekątna obrazu: 0.76-7.62m
- Format projekcji: 1.45:1-2.24:1
- Żywotność lampy: 20000/-/- godziny (standardowy/Eco/Eco+)
- Głośność: 33/29dB(A) (standardowy/Eco)
- Lens-shift: manualnie, vertikal +12.5%
- Złącza wideo: 2x VGA In, 1x VGA Out, 2x HDMI In (1x MHL kompatybilny), 1x Composite Video (RCA), 1x S-Video
- Złącza audio: 1x stereo Line In (RCA), 1x wtyczka jack Audio In, 1x wtyczka jack Audio Out
- Dodatkowe złącza: 1x LAN, 2x USB, 1x RS-232
- Zużycie prądu: 300/280W (standardowy/Eco)
- Wymiary (SxWxG): 410x158x272mm
- Waga: 5.60kg
- Cechy szczególne: 3D-Ready (aktywne), zintegrowane głośniki (1x 10W)
Display
- Projection System: DLP Single 0.65" WXGA
- Resolution: 1280X800 pixels
- Brightness: 4000 ANSI Lumens
- Contrast Ratio*: 100,000:1
- Display Color: 1.07 Billion Colors
- Aspect Ratio: Native16:10 (5 aspect ratio selectable)
- Light Source: Laser diodes
- Light Source Life*: 20,000 hours(Normal)
Optical
- Lens Shift: Vertical: +12.5%
Keystone Correction
Vertical: ± 30 degrees ,
Horizontal: ± 30 degrees
- Projection Offset: 112.5%
- Projection Size: 30" ~ 300"
Audio
Special Feature
- Security(anti-theft): Security Bar, Kensington anti-theft lock slot
- Feature: Blank for True Black , 2D Keystone, Corner fit. Custom lightsource mode(brightness adjustment), Constant Brightness Mode, Infographic and Vivid mode ,Dust Proof engine.
Compatibility
- Resolution Support: VGA(640 x 480) to WUXGA(1920 x 1200)
- Horizontal Frequency: 15 ~ 102KHz
- Vertical Scan Rate: 23 ~ 120 Hz
- HDTV Compatibility: 480i, 480p, 576i, 567p, 720p, 1080i, 1080p
- Video Compatibility: NTSC, PAL, SECAM
Power
- Power Consumption (Max/Normal/Eco): 320/ 300/ 280W
- Standby Power Consumption: Normal < 0.5W. Network < 2W
- Power Supply: 100 ~ 240V AC
Dimension and Weight
- Product Dimensions (WxHxD): 410 x 158 x 272 mm
Operation Condition
- Noise Level (Normal/Eco): 33 /29 dB
- Operating Temperature: 0 ~ 40o C
Accessories
Accessories (Standard)
CD UM (5B.JHJ01.001)
QSG(4J.JHJ01.001)
Remote Control (5J.JJF06.001)
AAA Batteryx2
VGA cable (1.8m)
Power Cord (3m)
Warranty card (by Region)
Accessories (Optional)
Wireless Kit - Instashow WDC10 (9H.JF878.N4X)
Wireless Dongle - QCast (5J.JCK28.X01)
Wireless Dongle - QCast Mirror (5A.JH328.10X)
3D Glasses (5J.J9H25.002)
Ceiling mount (5J.JAM10.001)
3mm Dust Filter (FTFS01)
10mm Dust Filter (FTFC01)
Connectivity
I/O Port
HDMI-1 x1
HDMI-2/MHL x1
USB TypeA (1.5A power) x1
USB Type min B (For Page up/down and FW upgrade) x1
Computer In (D-sub 15pin, Female) x2
Monitor out (D-sub 15pin,Female) x1
RS232 In (D-sub 9pin, male) x1
LAN (RJ45) (Control & FW Upgrade) x1
DC 12V Trigger (3.5mm Jack) x1
Composite Video (RCA) x1
S-Video x1
Audio in (mini jack) x1
Audio out (mini jack) x1
Audio L/R in (RCA) x1
Microphone in (Mini jack) x1
IR Receiver (Front+Top) x2
OSD
- On Screen Display Language: Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (28 Languages)
Notice
* The Contrast is measure by Full On Full Off standard.
*LightSource life results will vary depending on environmental conditions and usage. Actual product's features and specifications are subject to change without notice.
