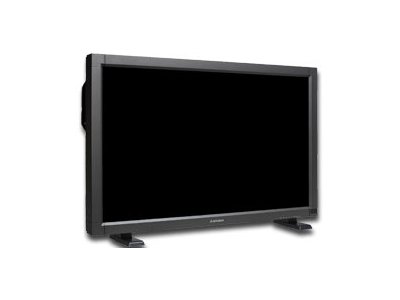

Monitor Mitsubishi 40" WXGA-Wide LCD Display MDT401S
MDT401S
The MDT401s from Mitsubishi Electric is a 40" viewable LCD display combining superior image clarity, exceptional brightness and reliable, long-life operation all in an ultra-thin design. When bigger is better for large format applications, the MDT401s is the ideal choice.
-
Versatile, long-lasting solution for a wide range of signage and information display applications such as transportation centres, hotel lobbies, company reception areas, restaurants, boardrooms and more
-
True WXGA 1280 x 768 resolution for exceptional viewing of 16:9 widescreen and 4:3 standard formats
-
Super bright at 450 cd/m2 for detailed imagery even in high ambient lighting environments
-
High 600:1 Contrast Ratio for superior image detail and truer blacks
-
Natural Colour Matrix™ and sRGB™ for flexible and independent colour control
-
Ergonomically designed to connect to any VESA standard third-party mounting arm or bracket and an overall lightweight construction for easy transport and installation
-
Landscape or portrait orientation for greater application flexibility
-
Two year limited on-site warranty and toll-free technical support
Supplied Accessories
Standard User's Manual, Power Cord, Video Signal Cable, Remote Control, AA Battery x 2, Clamper x 2, Screw x 2, CD-ROM, Ferrite Core x 2, Removeable Foot Mounts x 2, Screw (M5 x 40) for stand
Specification Overview
Model | MDT401S |
Picture | |
Display type |
40" WXGA-Wide LCD Display |
Viewable Area |
40" (101.6cm) diagonal |
Native (Maximum) Resolution |
1280 x 768 pixels |
Aspect Ratio |
16:9 |
Colour Depth |
16.7 million colours |
Contrast Ratio |
600:1 (typical) |
Brightness |
450 cd/m² (typical) |
Response Time |
23 ms (typical) |
Viewing Angle (Horizontal, Vertical) |
-85°/-86°, +/-85° |
Dot Pitch |
0.681mm(H) x 0.681mm(V) |
Input Terminals | |
PC |
Analogue (15pin mini D-sub cable) x 1 |
Video |
Component (5-Port BNC) x 1, S- Video x 1 Composite x 1 |
Audio |
RCA L/R x 1; Stereo mini jack x 1 |
Output Terminals | |
Video |
Component (5-Port BNC) x 1, Composite x 1 |
Audio |
RCA L/R x 1, External Speaker connections |
Control Input |
9 pin Mini D-sub (RS232) |
Frequency Range | |
Horizontal Frequency |
31.5KHz - 75KHz |
Vertical Frequency |
58Hz - 62Hz |
Video Compatibility | |
Video |
NTSC / PAL |
HDTV |
480i, 480p, 720p, 1080i |
Physical Characteristics | |
Operating Voltage |
Single phase, 50/60HZ, 100VAC to 240VAC ±10% |
Dimensions (W x H x D) |
949 x 605 x 141(excl. stand) |
Weight |
27.5kg (incl stand) |
Temperature (Operating) |
5°C ~ 40°C |
Air Humidity (Operating) |
10% - 80% |
Regulatory | |
Safety |
AS/NZS 60950:2000 |
EMC/EMI |
AS/NZS CISPR22:2002 (C-Tick) |
